Saturday, 26 December 2015

"Seagull", That Name Has A Familiar Ring

Christmas came and went. Hope you enjoyed your, whatever you call it.

My wife bought me a suitably inscribed Ship's Bell ...

... now all I have to do is build a boat around it.

I haven't been able to work on the boat for a week or two over the holiday period, as we have guests. I can't wait to carry on though.

Saturday, 5 December 2015

The Timber Arrives!

On Wednesday we had to drive to Heathrow (London's main airport) to collect my Granddaughter, Giselle, Max - her husband, and my great grandson, Logan. They flew in from Australia.

We night stopped on Wednesday and drove back on Thursday in the worst weather I've driven in for a very long time.

Before collapsing into bed I checked my email and there was one from Sarah from Robbins,  the Timber Suppliers:

Hi John
I have rang and left a message on your answer phone but just to confirm that we will be delivering your order tomorrow on our lorry. Driver said he will be with you in the morning.
Kind regards
Sarah Goldstone

Early next morning there was the lorry (truck) ....

I had tried to imagine how it would be packaged but I was wrong. The lengths were much longer than I had imagined. Nevertheless it looked very professional lying there waiting to be unloaded. I have to tell you that Robbins performed a top class service from start to end and that the timber was first-class, perfectly machined and packaged effectively. The important pieces had been quarter-sawn which was pleasing. I shall use them again ... although the price of their Marine Ply was off the planet.

Between the driver (who was an absolute star), me (Passed my Sale by Date)  and my son (an Accountant - say no more) who was home for the weekend - we manhandled the cargo into the garage boathouse. It was total chaos, there just wasn't enough room for it all. Luckily I had moved the sheets of Marine Plywood to the workshop, but even so, every inch of the boathouse and the building jig was covered in the new timber.

The old-timers will be smiling in the knowledge that you have to be very neat and tidy when building boats ... I soon remembered this lesson which I had learnt, and forgotten, many years ago. I therefore set about building some racking. I had thought earlier about using all the vast volume of emptiness above (and inside?) my head; I threw out the idea as it would have blocked out the lights. Instead I built simple racking on one wall:

You simply cannot believe the volume of timber on those racks, which the neatness conceals. Starting from the top: Two lengths of Pine, next a lot of Douglas Fir, next comes Western Red Cedar, next more Douglas Fir. The dark wood is Utile which is a hardwood from Western Africa and used as a substitute for mahogany. Finally a whole boatload of Western Red Cedar.

I'll not get into details about the timber, as over the coming months I shall be discussing its values and advantages as I go. However, I have to mention the smell of the wood which fills the boathouse ... it is magical!

A big thank you to Robbins Timber!!

Tuesday, 24 November 2015

Alignment and Preparation for the Build

Having got all the stations fitted, I now take the moulds down, one by one. Firstly, I have to cut them in half and then hold the two halves together by butt-straps.

Three butt straps holding the two halves of the mould together
The reason I have to do this is that I will not be able to remove the moulds from the finished boat as they will be too tight a fit. So what I have to do, when the boat is finished, is remove the butt-straps and then the moulds can be taken out of the hull in two halves.

Whilst the mould is out, I cut out a notch 1" x  3" (25 x 75mm) to accept the hog: which is a long piece of timber (1" x  3") that lies on top of the keel.

The notch for the hog

I now return and secure the mould back on its station, making sure it is exactly vertical and aligned along the centre line. To do this I tie and stretch a piece of string along the centre of the notches I have cut for the hog (remember the boat is built upside down, with the keel on top.)

String tied along the centre line of the boat

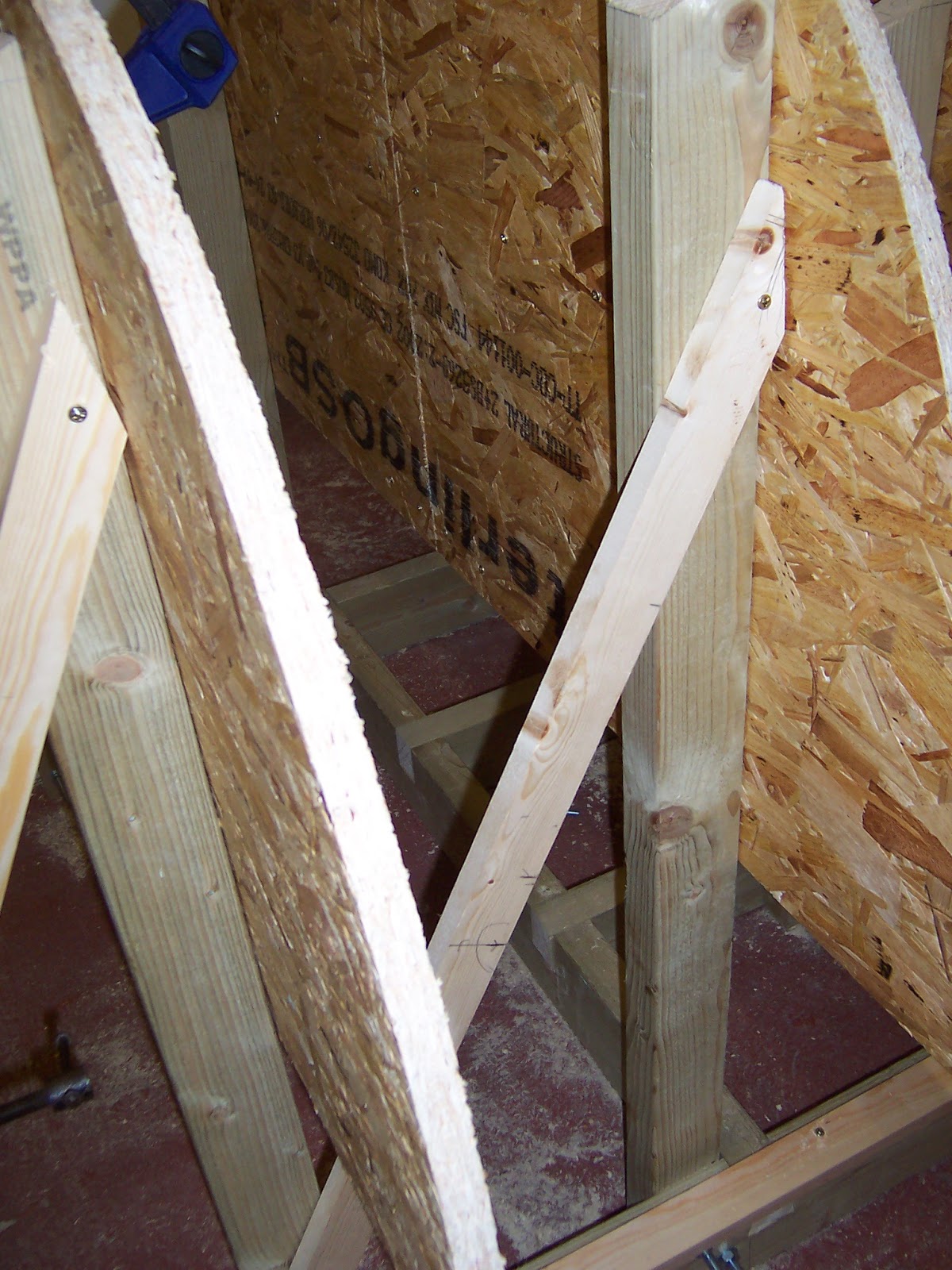

Having got the station accurately back in place I give extra security to it by adding stays that secure the uprights to the strongback

Stays holding the station in the correct posotion

As you might have noticed, constructing the building jig is very time consuming, but, just like a painting is only as good as the drawing beneath it, so a boat is only as good as the building jig upon which it is built.

I have to resist adding, in every post: 'fingers-crossed', 'hopefully', 'with any luck'.

Wednesday, 18 November 2015

Transom in Place ... Timber Ordered

The Transom, the very first piece of Seagull, has been fixed to the Building Jig.

The length of the vessel starts to become obvious, although it is difficult to get a photograph of the whole thing: below the transom can only just be seen at the far end.

Space in which to work continues to be the main problem, particularly when the bulk of material arrive. I am looking at ways to use the masses of room above my head.

I ordered and paid for the bulk of timber today, which allows me to print the current costed Bill of Materials below.


Cost to Date:

Note. UK cost includes 20% tax. This 20% is carried across into the US$ cost as well.

                                                                                                         £                 (US$)

Plans                                                                                               75.0             (114)
Timber for Building Jig                                                                 355.15            (542)
60 Bolts nuts and Washers                                                            42.50              (66)
(60 of Zinc Plated Coach / Carriage Bolts
with Nuts M10 10mm x 150mm)
1 sheet 8' x 4' x 3/4" Marine Ply                                                      50                 (76)
6 sheet 8' x 4' x 1/2"    "         "                                                       244               (372)
All Douglas Fir, Utile and Cedar                                                  2696              (4105)

Tuesday, 17 November 2015

The Twelfth Station Now In Situ.

I don't know if there is superstition in such things, but the thirteenth station will be the transom ... which is shown as station 0 (ZERO). I only add time to get this station in place today, but I'm hoping for a full day tomorrow.

I've had the quote back from Robbins Timber in Bristol, for most of the timber needed for the build, and it total's out at £2696 (US$ 4105). I'll check it out tonight and order tomorrow. They say the lead time is 10 working days, so expect it the first week in December: I always add a few days.

Monday, 16 November 2015


A good friend of mine Julie Ford Oliver (see her blog here Link
left a comment to my last posting that included the following:

"At one time I thought teak was best for boats, but remembered a friend using it and the glue didn't stick or something like that"

Julie knew nothing about my 'thing' with teak.

Here's the story:

As a shipwright apprentice, in my third year, I worked on a floating dock for a while. You can see a tiny bit of it in the top right hand corner.

To get to it we walked past the white building along a gangway, out over two pontoons, and over a brow (gangplank) onto the dock. All this was called the 'Cornwallis Jetty'.

In 1964 the dockyard was sold by the Admiralty (Navy Dept) to a private company, who were to convert the place to a Container Port. The private company ripped out everything you can see on the photograph, and below all that planking was ...HMS Cornwallis

Whereas all British Warships were made of Oak, or so we generally believe, the Cornwallis was made completely of Teak, the finest boat building timber possible: it is almost impervious to seawater constantly generating oil - this oil makes it difficult to glue, but glue wasn't used on such ships.

The Cornwallis was unusual as she wasn't built in Britain but in Bombay, India.

Bombay was famous for its Parsi families whom were descended from Persian Zoroastrians who had emigrated to India to avoid religious persecution from both Muslims and Christians. These families provided great Wadias (shipwrights), and it was to these that the Royal Navy turned. One in particular was the Master Shipwright that built the Teak, 54 gunner Cornwallis, and his name was Jemsatjee Bomanjee.

 He also built at the same time (1815) HMS Trincamalee which is still afloat in the UK at Hartlepool. Here are a few images of the Teak ship.

Incidentally, the Cornwallis fired the last shot in the American War of Independence. The Treaty of Nanking was also signed on her quarterdeck.

Finally, the private company that bought the dockyard ... burnt the Cornwallis!!!!

Saturday, 14 November 2015

Dressmaking and Arguably The Most Important Piece of Wood far ...

The very first piece of wood that will be part of the boat has just been rough cut out of a sheet of Marine Plywood, and here it is.

'Seagull's' Transom
To those that understand such terms, this is Seagull's transom, that is to say the piece of wood at the back end of the boat.

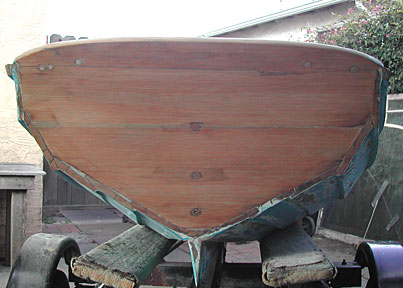

Here is an example in real life that I found on the Internet

I realise that this is all a bit confusing to my buddies who aren't really familiar with boat building. "If this is the first bit of wood, what's all the other stuff you've been building?" I hear them ask. So the next bit is for them.

OK think of dressmaking ... think of the boat as an elaborate dress. You cut out the pieces of dress using patterns you buy, which is the same as me cutting out the transom from the plans I bought.    Now you might have to have a dressmaker's dummy specially designed for the exact shape of the person you are making the dress for:

Let's not call it a dressmaker's dummy ... let's call it a 'building jig'

So this is my dressmaker's dummy (building jig).

Does that make sense? without meaning to be patronising.

Friday, 13 November 2015

Storms Rage and the Marine Plywood Arrives

The Jet Stream has dipped and is sending storm after storm across the Atlantic to pound against the cliffs outside. A good time to be building boats rather than sailing them.

I've made all the moulds (molds) now but I couldn't mount them on the building jig as I needed the floor space to cut up the large sheets. Below is a sheet laid horizontally ready for marking.

I select the appropriate section from the plan of moulds

and mark it out on the sterling board.

 I use nails to mark out full size the shape to be cut

then run a batten around the nails, and pencil around the batten.

 Finally, I remove the batten and nails and cut around the pencil line with a jig-saw.

The marine plywood arrived from my local supplier today, the thickest sheet, 8' x 4' x 3/4  (2500 x 1250 x 18), cost £42 (US$ 64), it was going to cost £126 a sheet from the place in Bristol, great saving there.

Altogether the plywood sheets cost £294 including 20% tax.

Therefore the cost to date is

Cost to Date:

Note. UK cost includes 20% tax. This 20% is carried across into the US$ cost as well.

                                                                                                         £                 (US$)

Plans                                                                                               75.0             (114)
Timber for Building Jig                                                                 355.15            (542)
60 Bolts nuts and Washers                                                            42.50              (66)
(60 of Zinc Plated Coach / Carriage Bolts
with Nuts M10 10mm x 150mm)
1 sheet 8' x 4' x 3/4" Marine Ply                                                      50                 (76)
6 sheet 8' x 4' x 1/2"    "         "                                                       244               (372)

Tuesday, 10 November 2015

The Front Stations in Place

Well the front half is done - station wise. I'll start on the other half tomorrow although I have a lot going on away from the boat.

The Front Seven stations, of the total Thirteen, in place

Monday, 9 November 2015

Saturday, 7 November 2015

A Slow Day

Suffering from low energy levels today, so I took it slowly.

There are 13 moulds to be made and mounted on the Building Jig. I have mounted two moulds so far, #7 and #8. Just to remind you:

Today's posting covers the making and installing a third mould, #9.

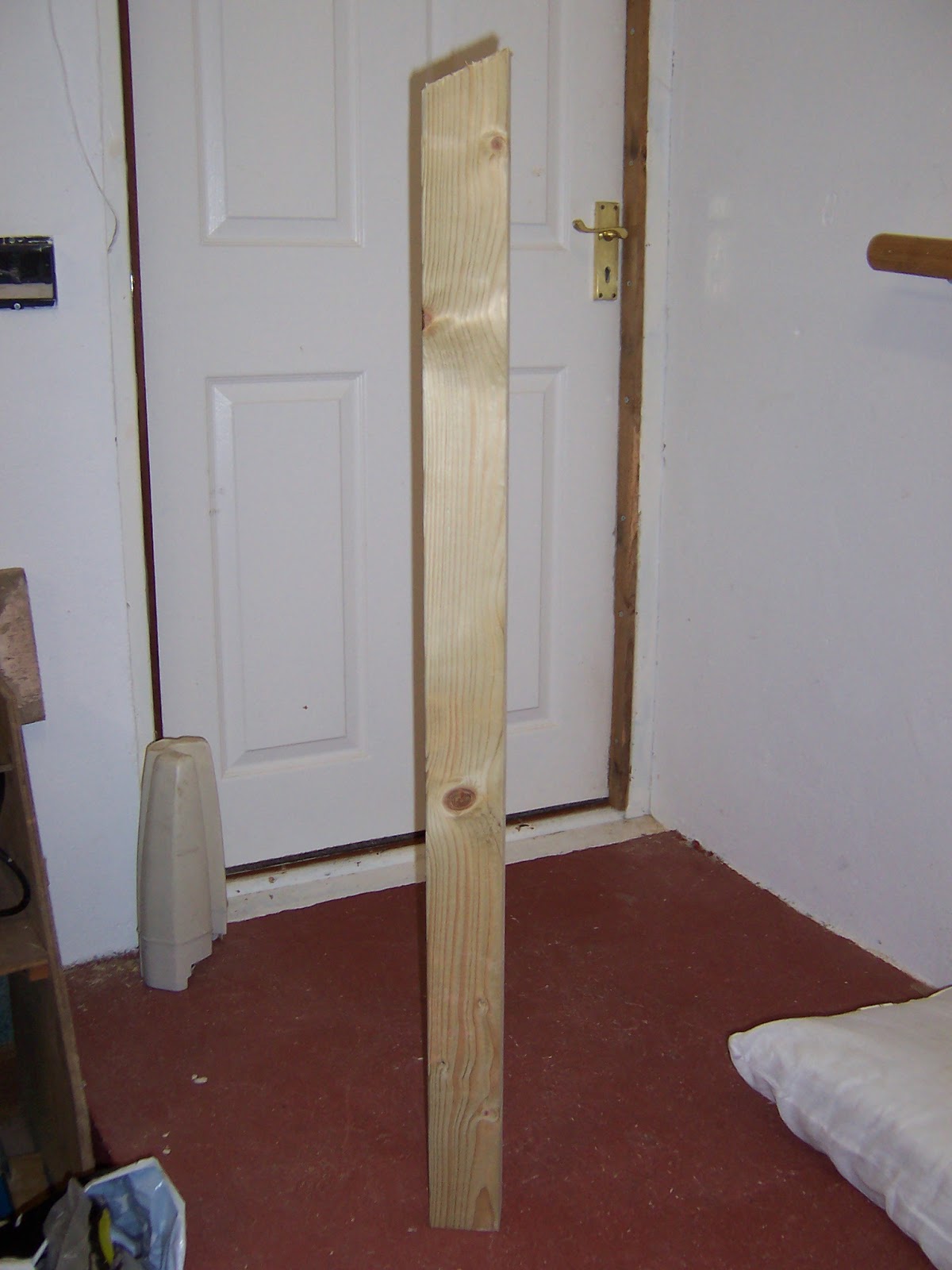

To be able to put mould #9 in place I need two uprights bolted to the base. One is all ready in place and here is the second upright freshly cut.

I  position this upright on the jig base, cramp it in place. Then drill two 12mm (3/8") diameter holes through both the upright and the jig base. I insert one coach through the top hole and tighten.

TIP added after build: Cover the bolts and nuts in masking tape to protect them from glue: they take 30 seconds to undo ... but ... if glue falls on them and sets (as it did on many of mine) it can take 15 - 30 minutes to get each bolt unfastened.

I used a spirit level to make sure the post is vertical and then insert and tighten the second bolt. Then check again for vertical accuracy and then fully tighten both bolts.

I want ALL the tops of the moulds to be 1250mm from the ground, so I subtract the depth of the mould, 750mm, from 1250 (1250 - 750 = 500) and measure and pencil mark 500 up from the floor on the two uprights and clamp a piece of timber between the uprights at the 500 marks - using a spirit level to check it's horizontal. This cross piece will support and accurately locate the mould when it's made.

I struggle curse and swear a Sterling board into the horizontal and then begin to mark out the mould from the drawing

I place nails at positions I have plotted. Then run a flexible batten around the nails and pencil in the curves (forgot to photograph this stage, sorry)

I then carefully cut out the mould using a jig saw.

I then placed the mould onto the support on the two uprights, made sure the centre line on the mould met the centre line on the horizontal support. I cramped the mould in place and screwed it to the uprights.

Job done!

Friday, 6 November 2015

The first of the Moulds (Molds)

Just to remind you, I have started the Building Jig a few days ago:

Now I am adding the uprights, which I bolt to the base. I then cut out the moulds and screw them to the uprights:

Notice the black clamps holding the uprights to the base. These are the most frequently used tools I have and it pleases me to be using them as I made them when I was 15 years old.

The biggest problem I'm finding is space in which to work as the jig is taking up most of the working area. I have to take a Sterling Board from where I have them stacked and get it into a horizontal position three feet off the floor.

They might not look it but they are very heavy and awkward to be manhandled by one person.

Once I have it horizontal, I mark out on it the shape of the Mould, very accurately, using the information on the plans I bought.

Next I use a jigsaw to cut the mould from the Sterling board, then screw it to the appropriate uprights.

All I'm doing here is summarizing the process in order that I can give you an update. I will try to photograph the process step by step  tomorrow, it took me two moulds to get from 'trial & error' to a procedure for working.

Monday, 2 November 2015

Finally started.

Today I started work in earnest, on the Building Jig.

This is the base of the Jig and is often referred to as the Strongback. Its fifteen feet long and nearly four feet wide and made from softwood five inches by two inches. What can't be seen is all the location markings on the two outside lengths. I've done these as accurately as I can because they are the location of the vertical posts that I will begin to fit tomorrow.

One by-product (always want to write bi-product) of all this endeavour is 'chips.'  These are the scrap off-cuts made from shipbuilding (see Blue Town). My daughter lives on a farm, five minutes away, and loves her roaring log fire; the 'chips' are ideal kindling and log supplements.

That's all for now ... gratifying to have made a start.

Cost to Date:

Note. UK cost includes 20% tax. This 20% is carried across into the US$ cost as well.

                                                  £                 (US$)

Plans                                         75               (114)
Timber for Building Jig          355.15            (542)
60 Bolts nuts and Washers     42.50              (66)
(60 of Zinc Plated Coach / Carriage Bolts with Nuts M10 10mm x 150mm)
