EVEN M O R E.... Things I needed to know about Outboards, but didn't know I needed to know!!

 I wasn't at all sure how I was supposed to start the engine from the control console. I guessed I needed to buy an electrical ignition device, as nothing had arrived with the motor. However, I had ordered a throttle lever that 'fitted all Mercury outboards', and when it arrived I saw that it had an ignition key and electrical cables as part of the assembly.,

When I tried to work out how the electrical ignition cables fitted into the engine I was at a loss, and decided to call my outboard supplier. The conversation went something like this:

"That remote control I bought from you won't fit."

"I know, it's the wrong type, why did you buy it?"

"Because it said it fits all Mercury-"

"No, why did you buy it and not use the one that came with the motor?"

"There wasn't one with the motor!"

"Are you sure?"

"Well I wouldn't have bought another ..."

"True, you'll get it tomorrow."

And I did.

The large cable running from the right in the picture, was run under the starboard gunwale and the 14 pin harness at its end, emerged through the hole in the aft deck.

I then removed the top and starboard cowl from the motor to give me access to the engine itself. I pulled  the cable up through the hole in the deck and after a struggle, turned it through ninety degrees and attached it to the turquoise 'female' harness 14 point

The front control console ignition was now connected to the engine. In theory the engine fires when I turn the ignition key - using electricity from the new starter battery.

M O R E.... Things I needed to know about Outboards, but didn't know I needed to know!!

Many years ago, I took the family to Cornwall and we hired 'Old Stan's Cottage' on the quay of the Cothele Estate, on the River Tamar. We had a little dinghy that came with the cottage and it had a tiny outboard motor which had a little petrol tank on top of it. I assumed all outboards were the same, and I was wrong.

It was hard not to notice that a big red petrol tank came with the motor... it was portable!

The problem was compounded when I couldn't find any sort of inlet for petrol to get into the engine. I read the manual and found only one reference, under the start-up sequence: 'Ensure fuel pipe snaps onto engine fuel inlet'. After looking at every photograph in the book I found one from which I could vaguely see the approximate area the fuel pipe met the engine.

 I looked at the end of the fuel pipe and the valve for connecting it to the engine. It made no sense for at the end of the pipe valve was a brass plate and a 'snap hook' thingy.

Looking at the engine in the area I thought might be the right place I found a rubber bung sort of thing, which I pulled off to expose what looked an electrical connection!

I pushed my petrol pipe onto the 'electrical' connection and......'Snap' .... it was in place.

Happy smiling moment, I had learnt something. However, the next thing that had bothered me was how we would get electricity to the engine. This was self-resolving as coming out of the motor were two heavy duty battery wires. Battery wires black and fuel light grey (below)

My next job was to connect the new starter battery to the engine via the battery cables. I began by drilling a large hole in the upper aft deck and feeding both the battery cables and petrol pump through them.

    Next I drilled holes through the aft bulkhead of  the port locker and feeding the battery wires through the hole

I then unboxed the new battery and placed it in the port. aft, locker.

It seems that the motor will charge the battery much in the same way that car charges its battery. Which solved another problem for me.

 It only remained to put two stainless steel bolts through the engine fixing bracket and the transom.



Things I needed to know about Outboards, but didn't know I needed to know!!

 I knew the motor would hang off the transom and that it would need to be connected to controls in the wheel house, as effectively the engine also acted as a rudder. That sort of thing is obvious but where and how to start?

You may recall (see March 2020) that I wasn't sure if the steering cable would be long enough to fit into the engine (see fig 1)

(fig 1)

When I hung the motor from the transom I could see the cable was between 6 and 8 inches too short. No good having recriminations, so I shopped around for a new cable; no luck, all too short or far too long. There was nothing for it other than to buy a total system.

I removed the old helm mechanism and cable with a bit of difficulty, but nothing like the difficulty I encountered when fitting the new one. I'll not bore you with the details as helm installation was covered earlier... this was much the same but with swearing, blood, tears.

The new cable was just right, you can see it emerging in the bottom right hand corner of the picture with a silver nut and long bar leading into the engine

The long silver bar has to pass through a steel tube on the engine. Before we tried that we have to cover the silver bar in a thick coating of a special grease.

The bar was pushed as far as it would go into the engine 'tube', and the large silver nut (bottom left) screwed onto the threaded end of the tube

At the other end of the steering rod, a rubber nut was passed and screwed tight to the end of the engine tube.





 If I now turned the helm (steering wheel) it caused the rod, at the end of the steering cable, to slide up and down in the steel tube. All that was left to do was connect the engine to the steering rod to the engine itself. For this we needed a connecting rod.

One end of the connecting rod was bolted to the engine steering bracket and the other end bolted to the steering rod via a hole in the rod. All was tightened ready for testing.

I turned the helm from side to side and the engine moved accordingly, hence the engine acted as a rudder.

Installing the Outboard Motor

 Putting the engine into the boat was always going to be a problem: it was so heavy that I couldn't budge it an inch.

It's the sort of thing that is commonplace to a lot of you,, but to me it was Mount Everest

It's the sort of challenge I relish, for I needed to raise the engine vertically three foot, and backwards another six foot. Then I had to reposition the engine eight foot to the right, swing it into the vertical position and drop it with pinpoint accuracy into the slot I had carved in the transom (back).

All I had were a tiny pairs of pulley-system (£12 each) and a couple of mooring lines. It took three hours of coordinating small movements.

Well it's done!!!

The slot I had to cut was because the transom and transom beam were too wide for the motor. I have a photo of the slot but it has become corrupted.

Time For the Power Unit - Meet Mercury

I have fallen behind with my posts on here, concerning the installation of the 'electrics'. Events have overtaken me as the new, American built, Mercury Outboard Motor has arrived.

As is usual, I am totally at a loss with what to do with the engine. I have no experience of installing one, which presents me with the type of impossible challenge I love.

The challenges, however, had began much earlier, when I telephoned my preferred supplier to purchase a specific type of outboard.

   "We are out of stock of that model," the supplier said.

   "How long before you can get me one?" I asked.

   "Could be 12 months".

  "What! What else have you got?"

  "We are out of stock of everything. Covid closed the factories last year, and they are only just getting back into production. There's a long waiting list, do you want to go on it?"

  "I suppose so."

 "It's a 20% deposit - "

  "No thanks!"

I telephoned around, and got the same story.

Undaunted, I told my story to my facebook boat-group, on which I try to moderate18000 from all around the world. Amongst all the teasing from the pure-sail fans I got one suggestion, to contact 'Cambridge Outboards Ltd.' So I did.

It was out of hours but I could see on their website that they had in stock a Mercury 15 Horse Power, long shaft, 4 cylinder outboard. Just the job! I ordered and 'Paypalled' it........... but got no acknowledgement in my email... panic, panic.

I rang them up first thing Wednesday morning and they assured me all was well and that I should get the motor on the following Monday or Tuesday. So you can imagine my surprise when my front door bell rang on Friday morning and a little lady announced that she was here with the motor, but couldn't get her lorry down the road. There were some builders who had parked their vans on either side of the road and the large lorry couldn't get through.

We couldn't find the builders and the very kind lady and I trolley-jacked a massive heavy box down the middle of the road. Neither of us were very tall so we must have presented an amusing spectacle. By the time we had pushed it up the steep driveway we were all but exhausted What a star she was.

I now had the problem of getting the motor out of its box and into the garage. Then, right on cue, David turned up. David is my daughter's next door neighbour on the farm where they live. He is Polish and his wife, Ula, helps us by doing our cleaning. David was here to cut the back hedge for me (wonderful couple).

David bent down and picked up the motor in his arms!!! It had taken two of us and a trolley jack... but... David picked it up and carried it into the garage where he lay it on some boxes. I met two remarkable people that morning and felt blessed.

Now begins the saga of the installation.

Installing The Electrical Systems (Module 5)



Module 5 - Installing the Speedometer.

The speedometer was a very cheap installation, costing about £25. Remarkable that you can get the electronic speedo plus associated GPS unit so cheaply.

First, a hole was cut to allow the speedo to fit into the the control panel.

The black wire (negative) from the back of the speedo was run to the negative busbar.

The red positive wire was connected to the back of the second switch down on the left switch panel.

It's worth taking a few moments to explain how the left switch panel works (see below).

The left switch panel has six fuses on the left, six switches in the middle that illuminate when switched on and six labels, on the right, describing the equipment controlled by the switch.

 As we saw in the first two modules, two cables (one black and one red) arrive at the rear control panel from the battery.

 1. The black is connected to the negative busbar and the red to the positive busbar.

 2. A positive wire was then run from the positive busbar to the left switch panel.

3. A negative wire was run from the left switch panel to the negative busbar.

Effectively, this meant power was now available at all six switches.

We now connect the second switch down, on the left switch panel, to the positive cable (red) on the speedo.

Next, connect the negative (black) cable on the speedo to the negative busbar.

When we move the second switch down, on the left switch panel, to the 'on' position, electricity flows through the 5 amp fuse and then into the speedo, it flows out of the speedo back to the negative busbar, this completes the circuit and the speedo is 'live'. NB the speedo called for a 5 amp fuse and so I replaced the factory installed 15 amp fuse that came with the left switch panel.

Having got electricity to the speedo it only remained to plug the data cable supplied, into the back of the speedo. At the other end of the data cable is a GPS unit that keeps the speedo informed of the distance moved by the boat in a specific time (distance/time = velocity) which translates to the speed shown on the speedo.

I had previously mounted the GPS unit on the top centre of the wheelhouse and fed the data cable to the control panel using the same route as the navigation lights wires

GPS Unit for Speedometer

The final check came by connecting the battery and selecting the second switch down, on the left switch panel, to the 'on' position.

1. The second switch glowed red.

2. The face of the speedo illuminated

3  The odometer on the speedo appeared.

4. The numbers on the odometer spun, making a whirling sound

5. The odometer stopped and displayed a number. This means the GPS is in range and working. Otherwise it would have  displayed an error message.

The check went well and the installation of the speedometer was complete apart from the scratches to the woodwork around the speedo which will need filling and painting.

Installing The Electrical Systems (Module 4)

 Module 4 - Install Bilge Pump.

   The bilge pump should have been a much easier job than it turned out to be, thanks to a misprint in the instructions.

I located the pump as far aft as I could and close to the centreline, this being the lowest point in the boat and potentially the deepest point for water coming into the bilges. I glued a piece of plywood to the planks then screwed the base of the pump into the plywood.

Orange topped Bilge Pump

I had wanted the pump to be automatic, to allow increase in water levels to set it off. That way it would empty the bilges even if the boat was unmanned, however, it also had the facility to give a manual switch on/off. As I had an appropriate switch I connected the pump to it.

Auto/Manual/off switch for bilge pump, centre

It was a heck of a job running the cables the length of the boat to the bilge pump control switch on the control panel. Having made the connections, I switched on the power  ... it didn't work! For hours I searched for bad connections but finally gave up.

   Perhaps the pump was broken? But no, it seemed the switch I had was part to blame as it didn't work in manual mode.

   Let me explain how I found the real culprit:

1. The pump had 3 wires, a black (negative), a brown and a brown with white stripe.

2. The instructions tell you to connect the brown white and black to give the automatic operation...this is a misprint, it should say manual operation.

3. Seven lines below it says the black and brown to give automatic. This is why the original set up didn't work.

  I decided to simplify everything. I stripped out the cables and ran shorter lengths of cable direct to the battery. I took the wires through a black conduit to protect them and ran them from the pump up into the battery locker

Whilst the black cable remained black, I extended the brown with red to show 'live'. (all cables on Seagull are Black(-) and Red (+) )

I put in an a 5 amp inline fuse, to protect the pump, then connected the two wires (the thinner ones) to the battery terminals.

I pressed the test switch on the pump and it worked fine! Job Done!

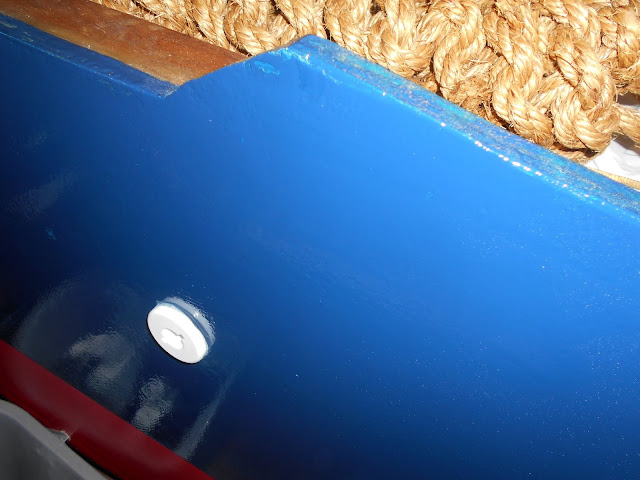

Finally, I drilled a hole in the transom and inserted a gland that had come with the bilge pump. The gland operated like a nut and bolt, with the bolt head being on the outside and the nut inside. I tightened the nut after making sure I had adequate sealant on the faying surfaces.

Inside, I connected the pump drain outlet to the gland in the transom and secured it with stainless steel jubilee clips

Installing The Electrical Systems (Module 3)

Module Three - Install Port & Starboard Navigation Lights

The switch unit comes ready wired to the three switches on the switch unit (top left) and three fuses (top middle) (fig 1). All I needed to

(fig 1)

All I had to do is take a negative wire (black) and attach it to the negative busbar and a positive wire (red) and connect it to the positive busbar (fig 2): the top wires in fig 2.

(fig 2)

Next I took the one available wire from the top switch and extended it by connecting it to a long length of wire wire. The long length was routed up the side of the wheel house and across the top of the forward window. I had left spaces in the wheel house to accommodate the wires (fig 3). I also secured a negative wire to the negative bus and ran it with the read to the nav lights.

(fig 3)

The wires passed though holes behind the Nav lights locations and were secured to the negative and positive points on both lights (fig 4).

(fig 4)

both light were screwed to the outside of the wheelhouse, the battery connected and the top swith turned to on ... the light illuminated. (fig 5 and 6).

(fig 5)

(fig 6)
